DS Titanium Single-Fire Clip
Choose a category or subcategory
DS Titanium Ligation-Clips
Removal Forceps
This system is innovative and unique in the segment of Titanium Ligation-Clips.
Reliable:
The DS-Clip provides a firm hold on the clipped structure.
Convenient:
The system is easy to use. It does not require an
adaption of the order of operation.
Material: Titanium
- Clip Applier medium-large (green) 200mm
- Clip Applier medium-large (green) 280mm
- Colour coding for easy identification to the matching clip size
- The DS-Clip has a clip shape with parallel arranged bars with a gap between which compresses the tissue
- They stabilize the clip against axial dislodgement. The clip closes from the tip.
- A diamond-shaped inner clip profile leads to an enlarged contact surface with the tissue.
- Selective clip sizes are also available with latch, which additionally prevents the clip from slipping.
| Description | Small | Medium | Medium - Large | Large |
| Appliers for open surgery | ||||
|---|---|---|---|---|
| 150 mm, 25° | FB 222R | FB 234R | - | - |
| 200 mm, 25° | FB 223R | FB 235R | FB 240R | FB 246R |
| 200 mm, 65° | FB 226R | FB 238R | FB 243R | FB 249R |
| 200 mm, 90° | - | - | FB 254R | FB 252R |
| 280 mm, 25° | FB 224R | FB 236R | FB 242R | FB 248R |
| 280 mm, 65° | FB 227R | FB 239R | FB 245R | FB 251R |
| 280 mm, 90° | - | - | FB 255R | FB 253R |
| Appliers for minimal invasive surgery | ||||

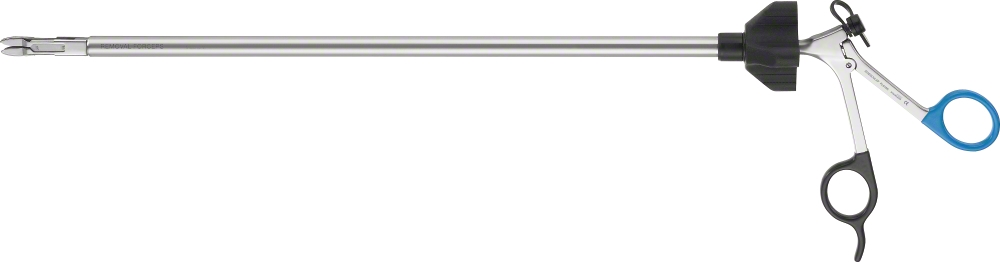

| 330 mm, Ø/diam. 10 mm | - | PL 504R | PL 503R | - |
| 330 mm, Ø/diam. 12 mm | - | - | - | PL 528R |
