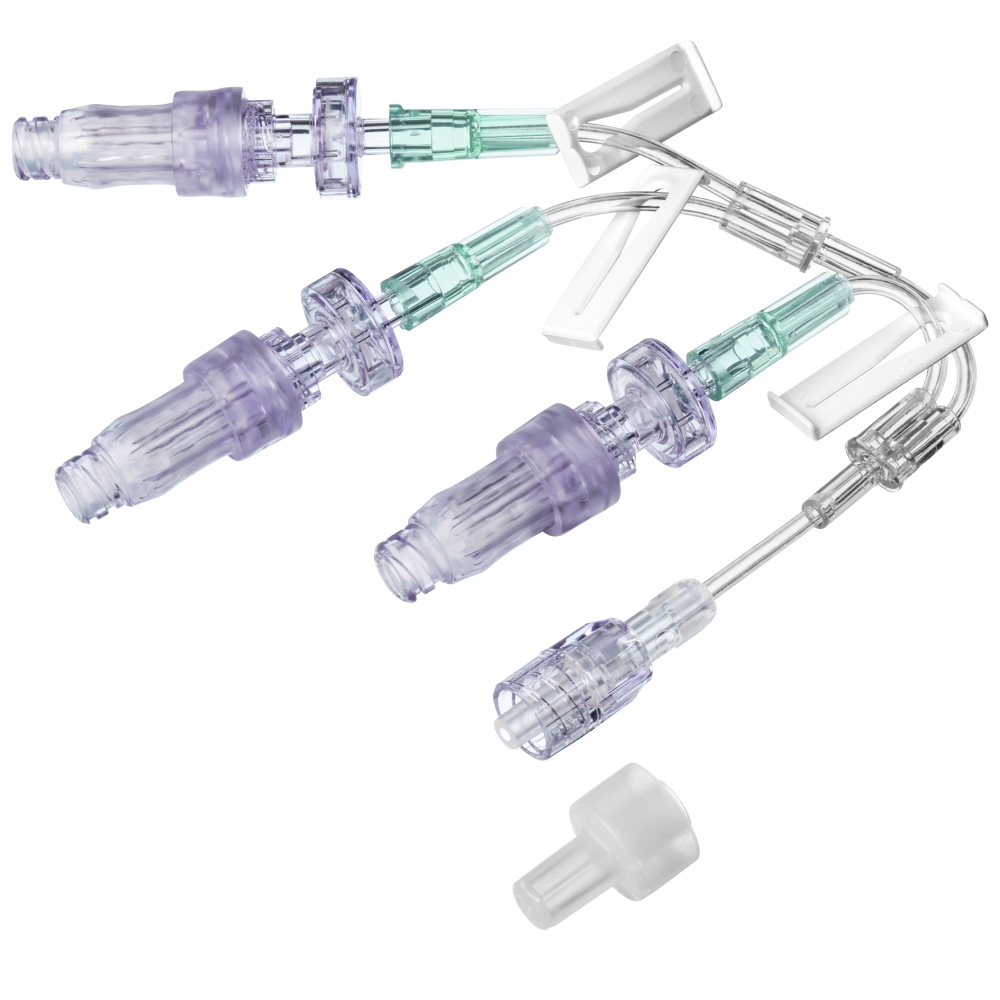

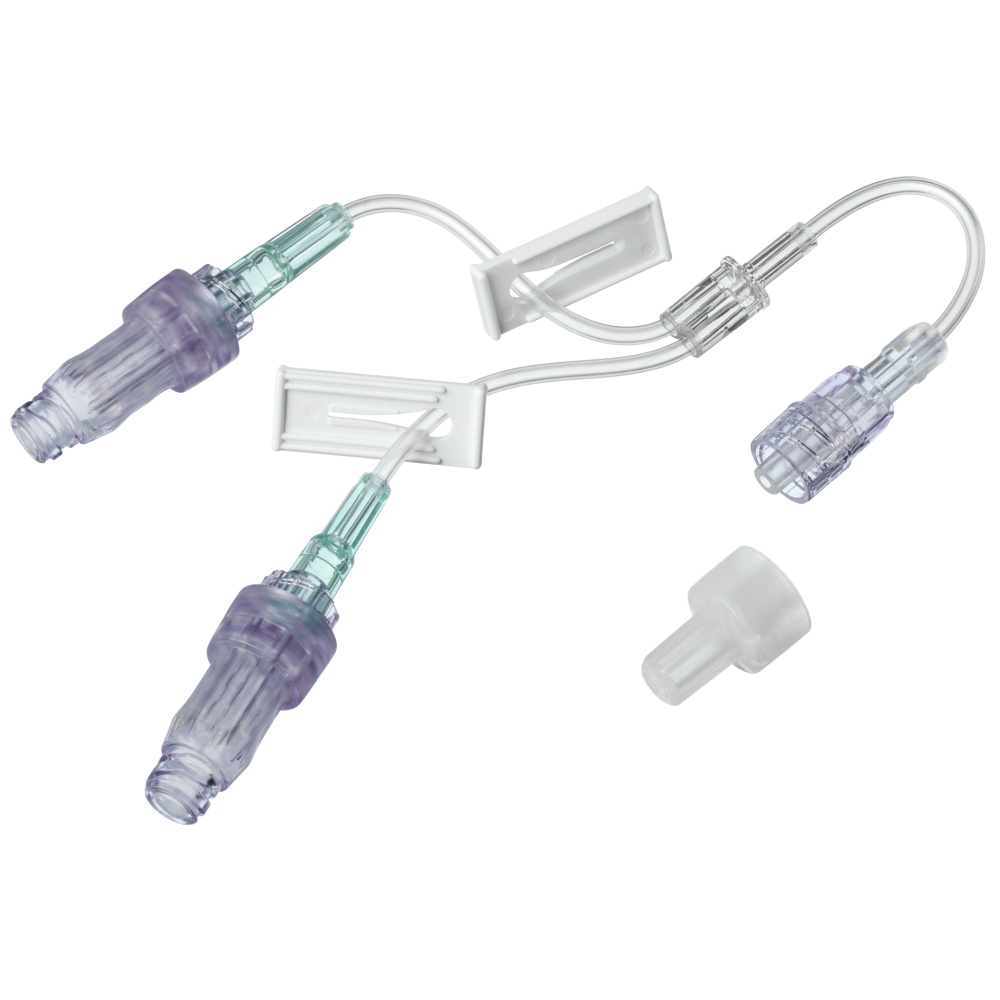

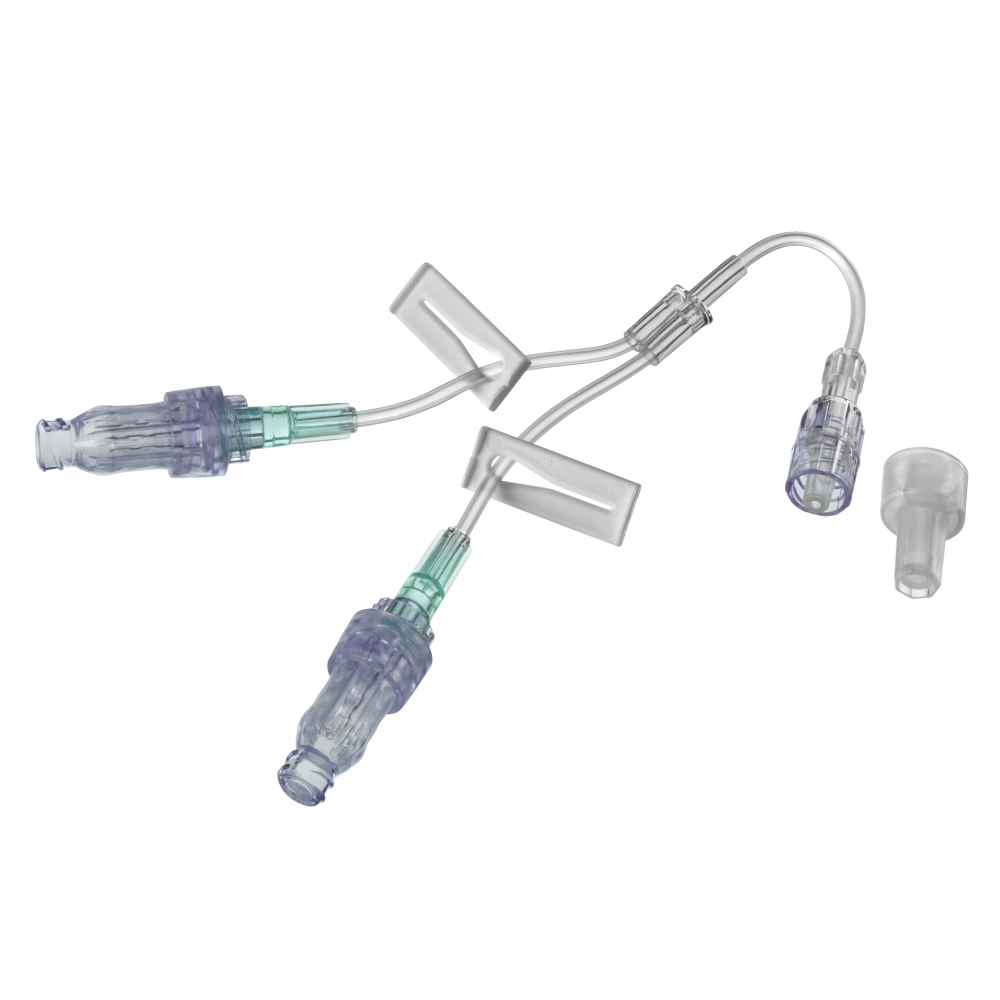

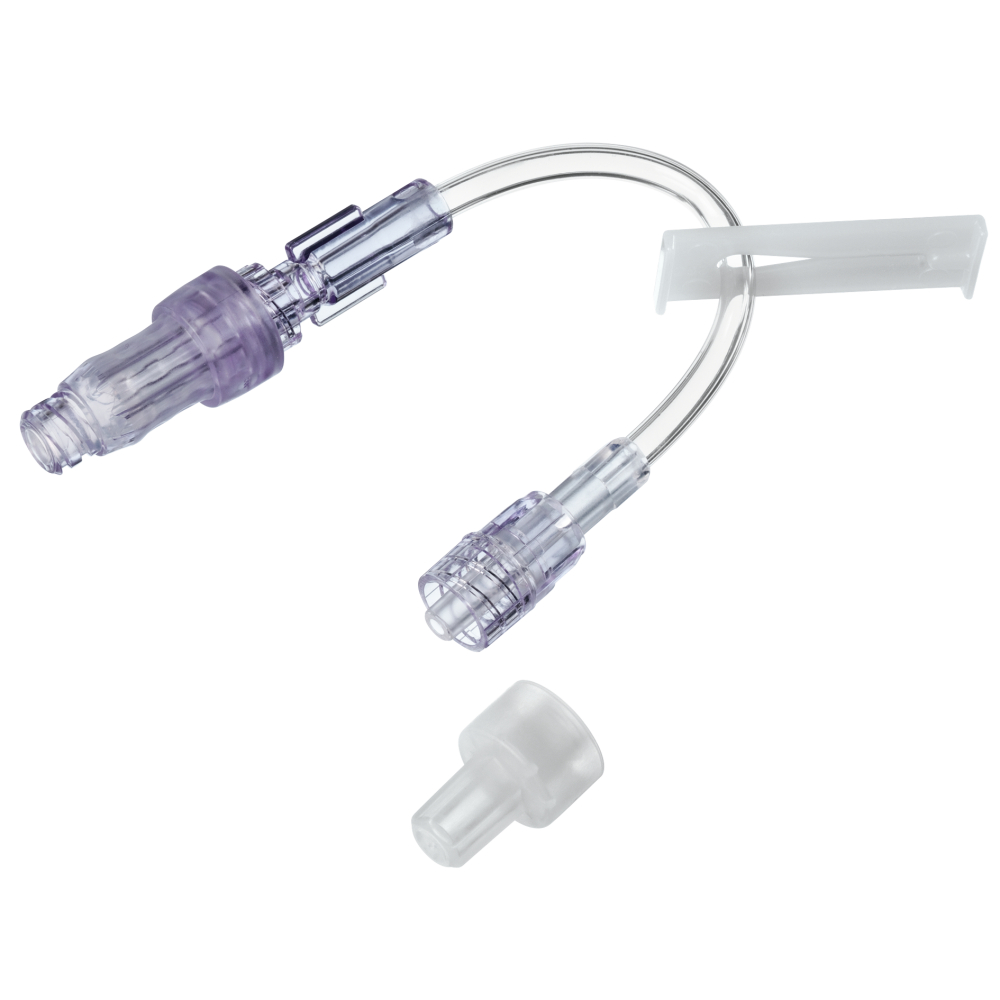

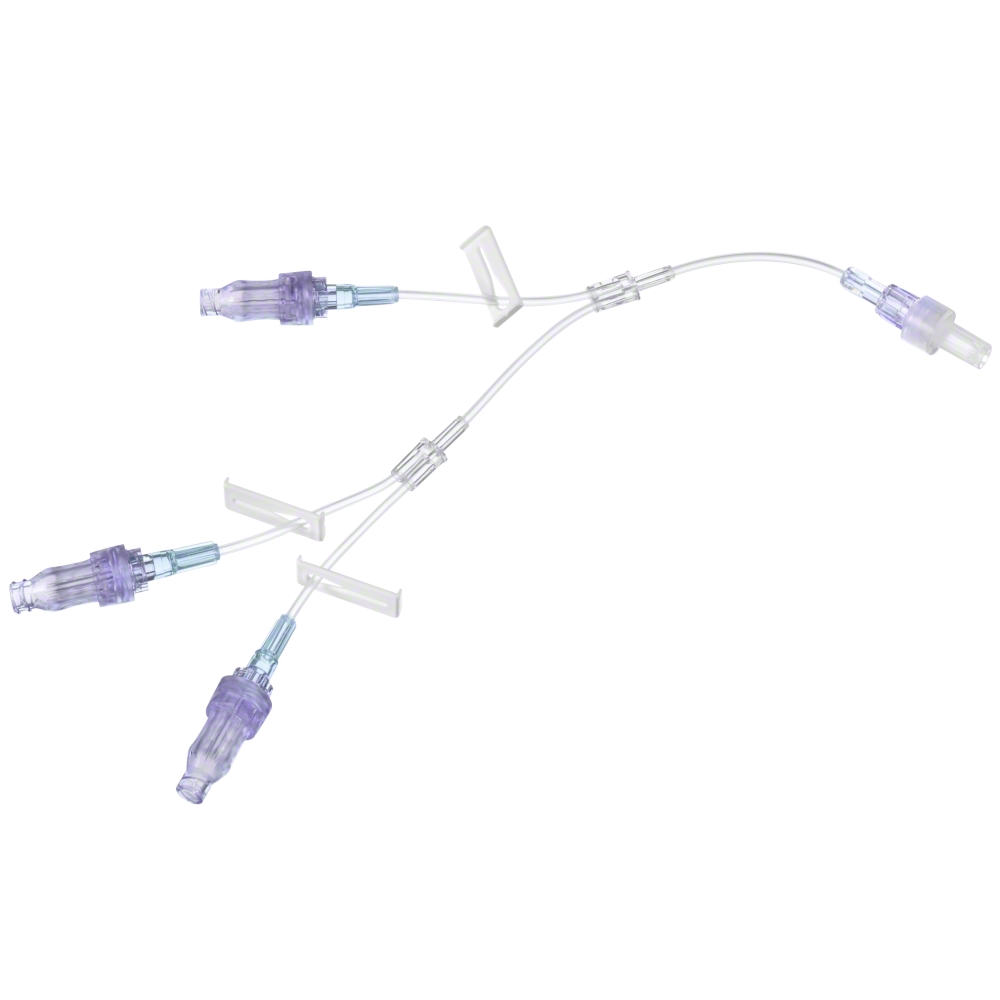

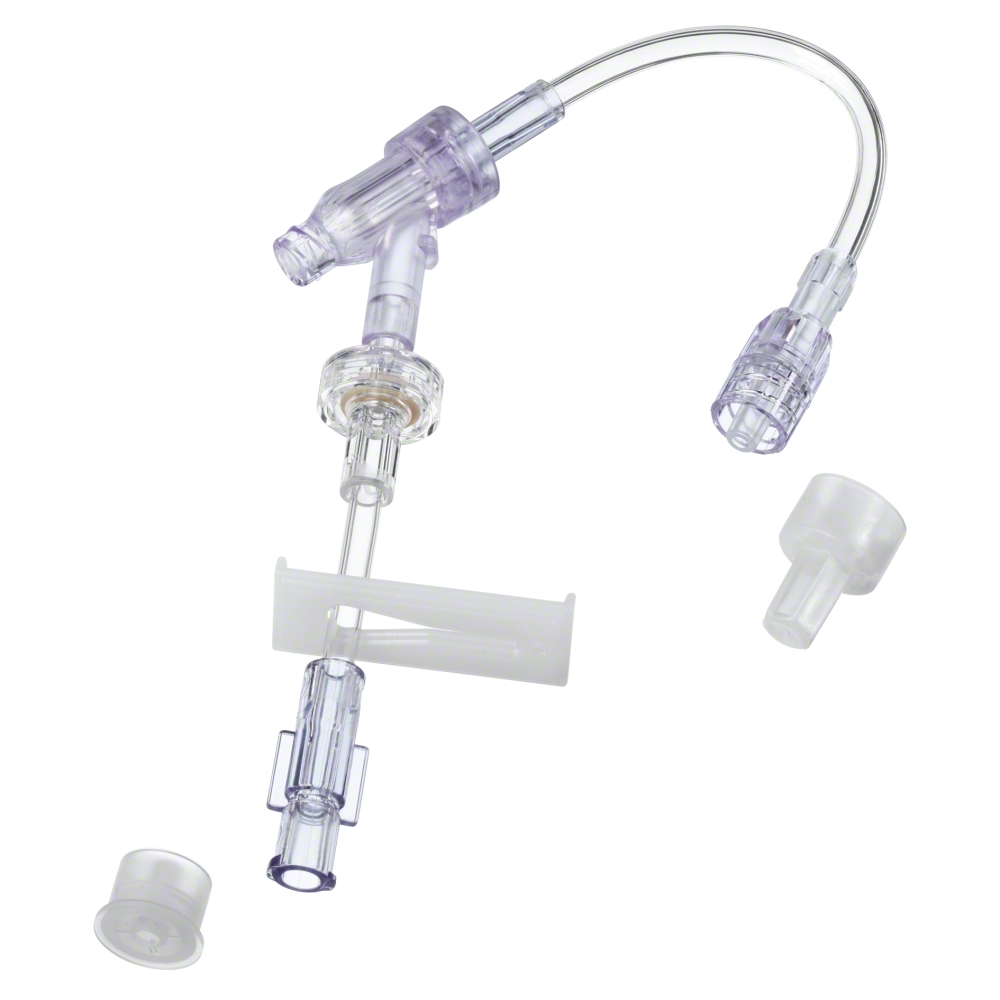

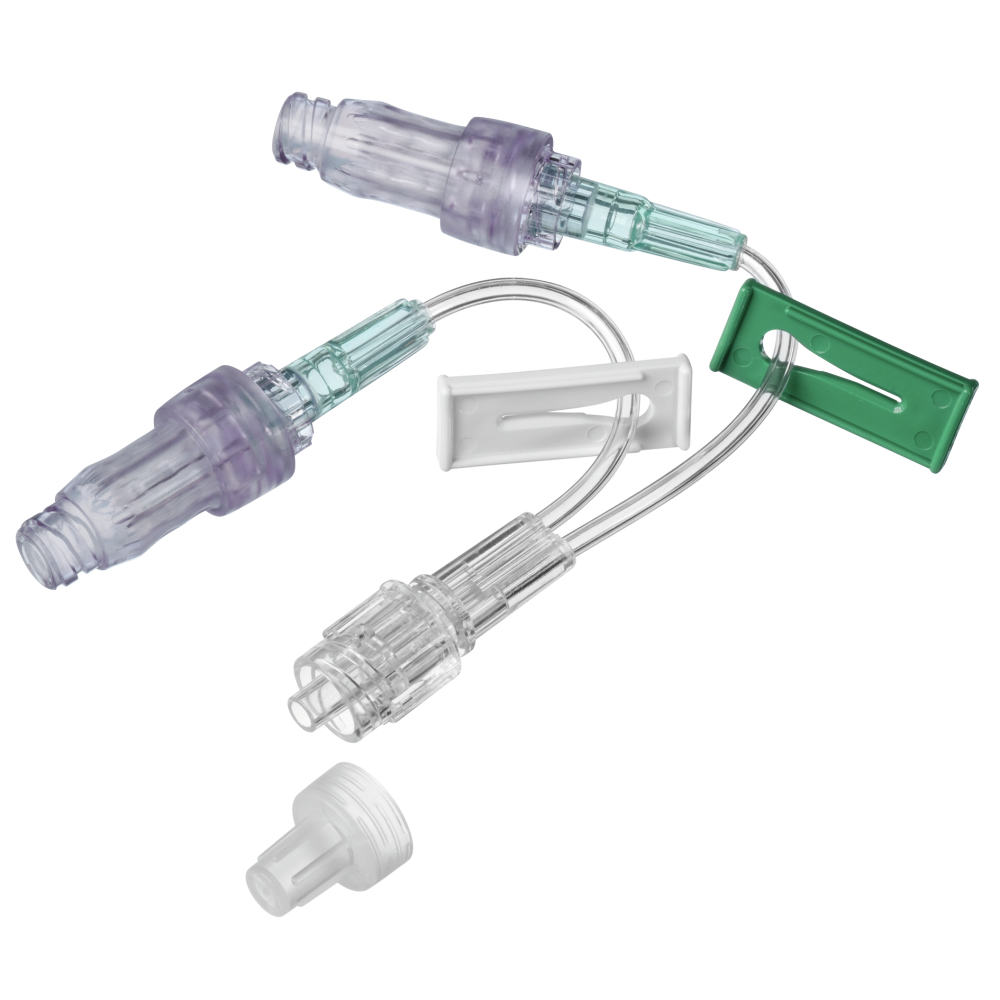

Caresite^® Extension Set

Advantages

Luer-Slip and Luer-Lock compatible

• Easy access for Luer-Slip and Luer-Lock connections. Suitable for several IV procedures (e.g. Luer Lock connections, etc.).¹

Non-removable slide clamp

• Non-removable slide clamps prevent the unintended removal by patients and reduce the risk that patients swallow the clamps (e.g. small children on pediatric wards).¹

Rotating Spin-Lock connector

• Designed to minimise twisting of tubing.¹

High pressure resistant

• The following Caresite® Extension Sets are suitable for use with power injectors which allows more flexibility:
  - REF 470100 – Smallbore Single Extension Set
  They have a pressure resistance up to 300 psi at 10mL/sec.¹

Average fluid displacement 0.029 ml (positive)

• Designed to reduce the risk of

Designed to minimize slips and touch contamination

• Ergonomic design provides easy access by allowing a good grip and easy connection.¹

Back-check valve

• Some of our Caresite® Extension Sets have a back-check valve within its composition. The back-check valve prevents backflow of fluids and blood and therefore it offers safety during parallel pressure and gravity infusions.¹

Patient population

• The device can be used for all patients for which infusion therapy is prescribed. No gender or age-related limitations. There are no patient population restrictions.¹

Technical data:

• Not made with DEHP¹
• Not made with Latex / Natural rubber.¹

RISK PREVENTION

Sharps Injury

• Needle-free systems are designed to provide convenient and safe needle-free IV access for injection, aspiration or parallel infusion.^2,3

Air Embolism

• A closed system helps to reduce the risk of air embolism due to the self-sealing valve which avoids intake of air.^2,4,5,6

Chemical contamination

• A closed system helps to reduce the risk of chemical contamination as the valve prevents spillage / drug exposure.^2,4,5,6

Microbial contamination / Airborne contamination / Touch contamination

• Product does not allow the entry of external contaminants in the system, forming an effective microbial barrier when exposed to a microbial burden.
• Effective barrier to microbial contamination when swabbed with alcohol pad.
• Swabbable valve forms a closed system as it is designed to prevent microbial ingress and the escape of contaminants. ^4,6

Reduction of catheter manipulation

• The usage of a short extension set on a peripheral catheter will separate the healthcare workers‘ hands from the catheter hub and helps to reduce blood contact and decrease catheter manipulation.⁹ Therefore, considering the usage of an extension set between the peripheral catheter and needleless connector will reduce the risk of catheter manipulation. ^{7, 9}

Manipulation away from injection site

• Using an extension set allows manipulation away from the injection site, which ensures treatment of patient by infusion, transfusion, aspiration of blood samples and intermittent injection.⁹

Smallbore tubings

• Tubings with smaller internal diameters are minimizing the contained volume which can be a benefit to patient populations where fluid volume is important.⁸

Reduction of Mechanical phlebitis

• Mechanical phlebitis may be reduced by adding an extension set. Adding an extension set can reduce the amount of movement caused by accessing the injection port at the insertion site. Using a short extension set attached to the catheter can reduce complications associated with catheter movement.^{10, 11}

Intravascular catheter-related infections

• Usage of a needleless system to access IV tubing helps to reduce the risk of Intravascular catheter-related infections.¹³

Dislodgement
